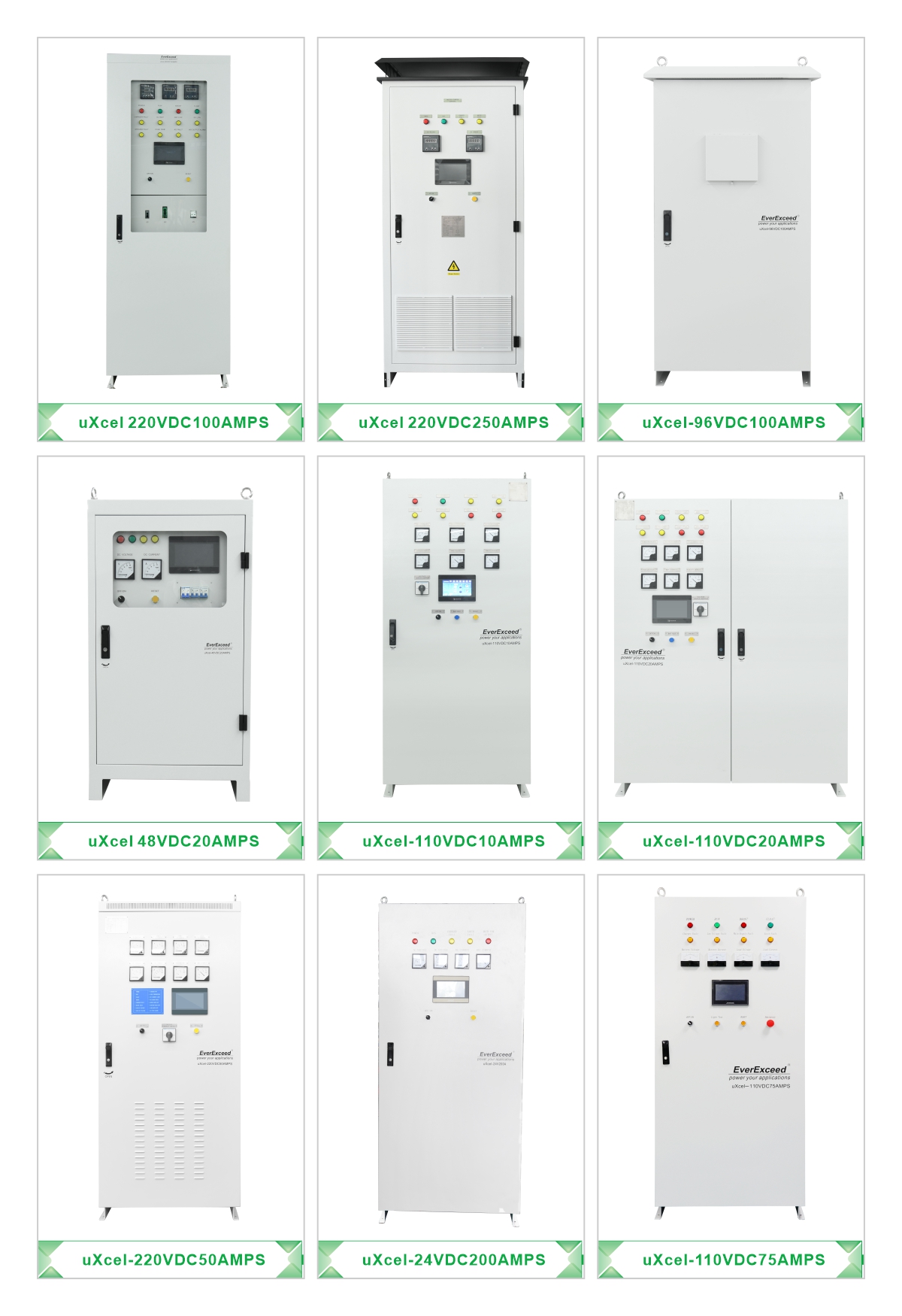

uXcel Series Thyristor Controlled Industrial Battery Charger
EverExceed uXcel Series Rectifier Battery Charger is an industrial charger which is flexibly customized battery charger for charging lead acid battery and NiCd battery.
uXcel Series
Quantity:



Large LCD display

Leading Technology

                      High Reliability and High MTBF
User friendly operation with large LCD display, optional touch screen with the choices of 8 languages ensure easy maintenance and operation.Smart communication and Remote MonitoringThe embedded micro-computer controller processes signals 10 times faster than standard analog methods.
Fully automatic battery management with"four remote"
functions meeting requirements of untended duty control.

Isolation transformer

Flexible maintenance and Reduced MTTR

                            Long design life up to 20+years
Filter more than 3 harmonics in the power grid interference to the system equipment, while strengthening the operation security of the system.

The design make it easy for front-access to all vital modules modules of the charger Versatile constant voltage and constant current charging modes

Smart communication and Remote Monitoring through isolated RS232, RS485, Ethernet. Full data logging

 System design life up to 20+ years in continuous operation under the condition of appropriate maintenance
Flexibly customized
Ruggedized solutions
Complete power protection solutions

Power solutions to perfectly meet the specific requirements of customer’s industrial applications.

To withstand harsh environments,extreme temperatures, humidity, dust and vibrations etc. Up to IP55 protection.Including switchgear,DC distribution, monitoring suite.



EverExceed | A global leading manufacturer of customized industrial battery charger；

We can customize More flexible, More reliable, More affordable industrial battery chargers for lead acid batteries, nickel cadmium batteries and lithium batteries.



Technical specifications




INPUT
AC voltage
·Single phase1×230V（220,240）
·Three phase3×400V（380,415）
Input voltage tolerance±10%
Input Wiring3 Phase 3 Wirse or 3 Phase 4 Wires
Input frequecny50Hz(60Hz)
Input frequecny tolerance±5%
Input ProtectionThermic Magnetic Overcurrent protection via MCCB

OPTIONS
RectifierOther input voltage(1×110 to 3×690VAC)
Harmonic filter for THDi≈15%
Blocking diode
Surge and Lightning protections
Voltage ripple filter
BetteryBattery circuit protection box
Battery reversed polarity detection
Battery low-voltage disconnection contactor (LVD)
Battery room temperature sensor
Battery cabinet / rack
Battery monitoring system
SystemParallel configurations
Dropping diodes/DC-DC converter
Earth fault monitoring
Internal cabinet lighting
Anti-condensation heater
Output breaker
Front-panel analog meters/digtal meters
DC distribution
Temparature compensation
AC high and AC low alarm/protection
DC high and DC low alarm/protection
AC fault alarm
LED test function
MechanicalOther frame colour
Up to IP55 external
Plate thickness
Specified cabinet identification (tag, nameplate)
CommunicationModbus TCP/IP
modbus RTU(RS485)
DNP3.0 protocol
Volt-free contacts
Transducers 4-20mA
Remote monitoring








OUTPUT
Nominal DC voltage24/48/110/125/220/240/400
Output voltage range0-1.5×nominal voltage (adjustable)
Nominal DC current10-1500A
Output current range0-1.1×nominal current(adjustable)
Voltage stability±1% in float mode, input within tolerance
Voltage ripple1% RMS(with battery connected)
Current LimitationBattery current limitation can be adjusted
Filtering L-C Filter
Output ProtectionShort Circuit, NH Fuse and Overvoltage protection

BATTERY
TypeLead acid or nickel cadmium,
vented or recombination and Lithium battery




COMMUNICATION
CommunicationRS232, Modbus RTU
GENERAL DATA
Operating temperature0 to 50 °C
Storage temperature-20 to +70 °C
Relative humidity< 95 % non condensing
Operating altitude1000 m max without derating
CoolingFan cooling or Natural cooling according to rating
Efficiency90% according to rating
External protectionIP20
Noise
(at 1m in front of the unit)		55 – 65 dB according to rating
Cabinet colorRAL 7035
DimensionsVarying according to ratings & options

STANDARDS
IEC60146-1-1:2009Semiconductor converters -
Specification of basic requirements
IEC62040-1:2008+AMD1:2013Uninterruptible power systems (UPS)
- Part 1-2: General and safety requirements
 for UPS in restricted access locations
IEC62040-2:2006Uninterruptible power systems (UPS) – Part 2:
Electromagnetic compatibility (EMC) requirements
IEC61439-1:2011Low voltage switchgear and controlgear assemblies -
Part 1: General rules
IEC60529:1989+
AMD1:1999		Degrees of protection provided by enclosures (IP Code)
IEC60076-11:2004Power transformers – Part 11: Dry type transformers

European Directives
Low voltage directive: 2006/95/EC and 2014/35/EU
EMC directive: 2004/108/EC and 2014/30/EU
CE Mark








Applications for DC Power Solution:

The EverExceed uXcel® Rectifier-Charger range suits all DC applications requiring a large battery back-up:

Power transmission and distribution;  Continuous process industries;  Oil and Gas and petrochemical industries;  Transportation (Rail, metro,tramway).
