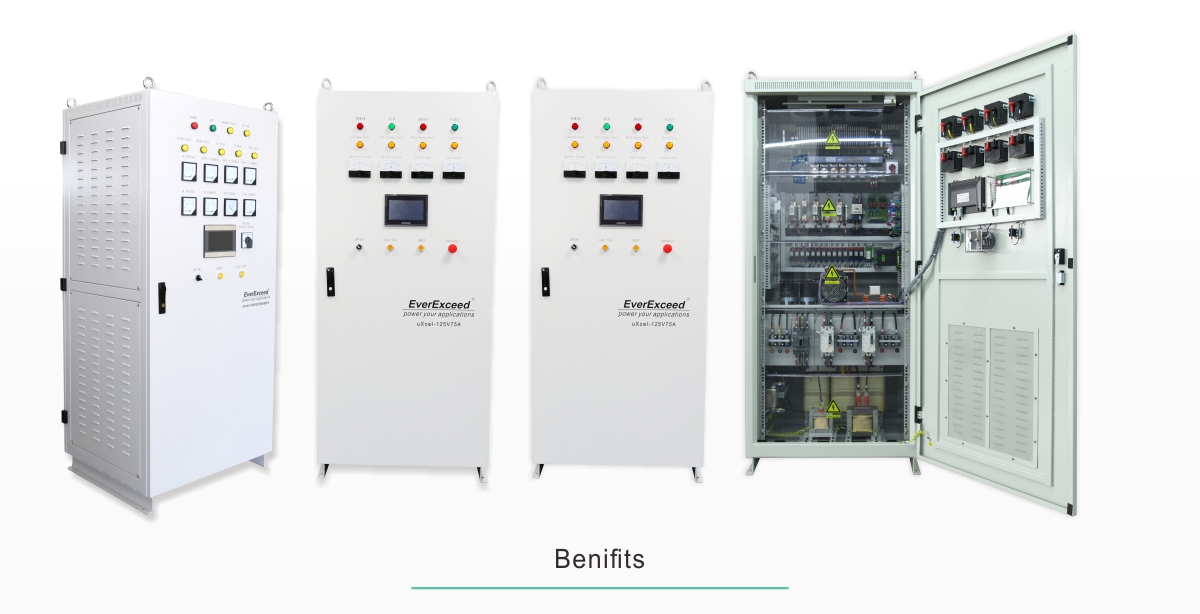

12-Pulse UXcelPremium® Series Battery Charger

The EverExceed uXcel premium range industrial battery charger is the 12-pulse battery charger of EverExceed Industrial Power solutions. It integrates proven design topology with the latest advanced digital control technology to control the 12-pulse thyristor bridge rectifier and provide the most reliable and trouble-free performances in any electrical and industrial environments. EverExceed uXcel range rectifier chargers can continuously protect your critical DC power industrial equipments and operations from the damage of power failures and interruptions, with its high reliable and superior performance.

12-Pulse uXcel Premium

Quantity:

The EverExceed uXcel premium range industrial battery charger is the 12-pulse battery charger of EverExceed Industrial Power solutions. It integrates proven design topology with the latest advanced digital control technology to control the 12-pulse thyristor bridge rectifier and provide the most reliable and trouble-free performances in any electrical and industrial environment. EverExceed uXcel range rectifier chargers can continuously protect your critical DC power industrial equipmequipmentperations from the damage of power failures and interruptions, with its hitheirreliable and superior performance.

Technical features


Large LCD display	Leading Technology	High Reliability and High MTBF
User friendly operation with large LCD display, optional touch screen with the choices of 8 languages ensure easy maintenance and operation.Smart communication and Remote Monitoring	The embedded micro-computer controller processes signals 10 times faster than standard analog methods.	Fully automatic battery management with"four remote" functions meeting requirements of untended duty control.

Isolation transformer	Flexible maintenance and Reduced MTTR	Long design life up to 20+years
Filter more than 3 harmonics in the power grid interference to the system equipment, while strengthening the operation security of the system.	The design make it easy for front-access to all vital modules modules of the charger Versatile constant voltage and constant current charging modes Smart communication and Remote Monitoring through isolated RS232, RS485, Ethernet. Full data logging	system design life up to 20+ years in continuous operation under the condition of appropriate maintenance

Flexibly customized	Ruggedized solutions	Complete power protection solutions
power solutions to perfectly meet the specific requirements of customer’s industrial applications.	to withstand harsh environments,extreme temperatures, humidity, dust and vibrations etc. Up to IP55 protection.	including switchgear,DC distribution, monitoring suite.

EverExceed | A global leading manufacturer of customized industrial battery charger；

We can customize More flexible, More reliable, More affordable industrial battery chargers for lead acid batteries, nickel cadmium batteries and lithium batteries.

Technical specifications

INPUT
AC voltage
Three phase	3×400V（380,415）
Input voltage tolerance	±10%
Input Wiring	3 Phase 3 Wirse or 3 Phase 4 Wires
Input frequecny	50Hz(60Hz)
Input frequecny tolerance	±5%
Input Protection	Thermic Magnetic Overcurrent protection via MCCB
Inpit power factor	>0.9
Input THDi	10%~15%

OPTIONS
Rectifier	Other input voltage
	Blocking diode
	Surge and Lightning protections
	Voltage ripple filter
	Battery circuit protection box
Bettery	Battery reversed polarity detection
	Battery low-voltage disconnection contactor (LVD)
	Battery room temperature sensor
	Battery cabinet / rack
	Battery monitoring system
	Parallel configurations
System	Dropping diodes/DC-DC converter
	Earth fault monitoring
	Internal cabinet lighting
	Anti-condensation heater
	Output breaker
	Front-panel analog meters/digtal meters
	DC distribution
	Temparature compensation
	AC high and AC low alarm/protection
	DC high and DC low alarm/protection
	AC fault alarm
	LED test function
	Other frame colour
Mechanical	Up to IP55 external
	Plate thickness
	Gaivanized sheet
	Front access maintenance
	Top cable entey
	Specified cabinet identification(tag,nameplate)
Communication	DNP3.0 protocol
	Volt-free contacts
	Transducers 4-20mA
	Remote monitoring
	Modbus TCP/IP

OUTPUT
Nominal DC voltage	24/48/110/125/220/240/400
Output voltage range	0-1.5×nominal voltage (adjustable)
Nominal DC current	10-1500A
Output current range	0-1.1×nominal current(adjustable)
Voltage stability	±1% in float mode, input within tolerance
Voltage ripple	1% RMS(with battery connected)
Current Limitation	Battery current limitation can be adjusted
Filtering	L-C Filter
Output Protection	Short Circuit, NH Fuse and Overvoltage protection

BATTERY
Type	Lead acid or nickel cadmium, vented or recombination and Lithium battery

COMMUNICATION
Communication	RS232, Modbus RTU

GENERAL DATA
Operating temperature	0 to 50 °C
Storage temperature	-20 to +70 °C
Relative humidity	< 95 % non condensing
Operating altitude	1000 m max without derating
Cooling	Fan cooling or Natural cooling according to rating
Efficiency	90% according to rating
External protection	IP20
Noise (at 1m in front of the unit)	55 – 65 dB according to rating
Cabinet color	RAL 7035
Dimensions	Varying according to ratings & options

STANDARDS
IEC60146-1-1:2009	Semiconductor converters - Specification of basic requirements
IEC62040-1:2008+AMD1:2013	Uninterruptible power systems (UPS) - Part 1-2: General and safety requirements for UPS in restricted access locations
IEC62040-2:2006	Uninterruptible power systems (UPS) – Part 2: Electromagnetic compatibility (EMC) requirements
IEC61439-1:2011	Low voltage switchgear and controlgear assemblies - Part 1: General rules
IEC60529:1989+ AMD1:1999	Degrees of protection provided by enclosures (IP Code)
IEC60076-11:2004	Power transformers – Part 11: Dry type transformers
