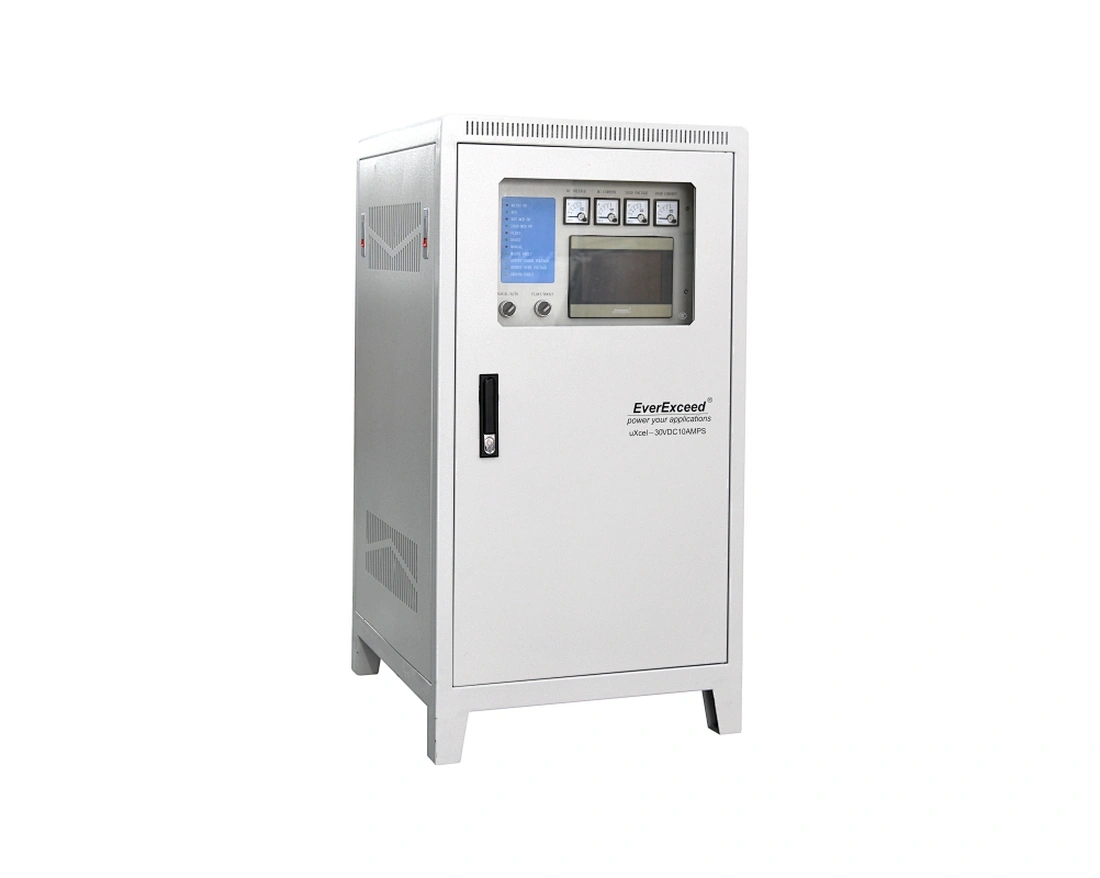

uXcel mini Battery Charger
The industrial battery charger provides a advanced solution with Small substations and power plants system. Rectifier battery charger combines reliability from naturally cooled thyristor-based rectifier with proven microprocessor control technology to offer the best performances in any electrical and environmental conditions. It's suitable for charging VRLA sealed lead acid, Lithium battery as well as maintenance free nickel-cadmium batteries.
uXcel mini
Quantity:
The industrial battery charger provides a advanced solution with Small substations and power plants system. Rectifier battery charger combines reliability from naturally cooled thyristor-based rectifier with proven microprocessor control technology to offer the best performances in any electrical and environmental conditions. It's suitable for charging VRLA sealed lead acid, Lithium battery as well as maintenance free nickel-cadmium batteries.
Technical features
 |  |  |
Large LCD display | Leading Technology | High Reliability and High MTBF |
| User friendly operation with large LCD display, optional touch screen with the choices of 8 languages ensure easy maintenance and operation.Smart communication and Remote Monitoring | The embedded micro-computer controller processes signals 10 times faster than standard analog methods | Fully automatic battery management with"four remote" functions meeting requirements of untended duty control |
 |  |  |

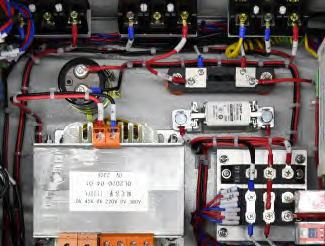

Isolation transformer | Flexible maintenance and Reduced MTTR | Long design life up to 20+years |
Filter more than 3 harmonics in the power grid interference to the system equipment, while strengthening the operation security of the system | The design make it easy for front-access to all vital modules modules of the charger Versatile constant voltage and constant current charging modes Smart communication and Remote Monitoring through isolated RS232, RS485, Ethernet. Full data logging | System design life up to 20+ years in continuous operation under the condition of appropriate maintenance |
 |  |  |
Flexibly customized | Ruggedized solutions | Complete power protection solutions |
Power solutions to perfectly meet the specific requirements of customer’s industrial applications | To withstand harsh environments,extreme temperatures, humidity, dust and vibrations etc. Up to IP55 protection | Including switchgear,DC distribution, monitoring suite |
Protection and alarm |  | |

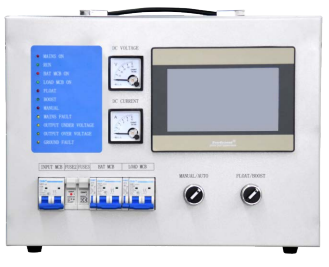

| Indications • Mains on / Manual • Run / Mains fault • BAT MCB on / Load MCB on • Float / Boost • Ground fault • Dropping diode(optional) |
Technical specifications
| INPUT | |
| Nominal input voltage | 120/208/220/230/240VAC+10% ,Single phase (Other voltages can be customized) |
| Frequency | 50/60Hz±5% |
| OUTPUT | |
| Output voltage | 24V, 30V, 48V, 50V |
| Output voltage range | 100%-150% nominal voltage |
| Output current | 10A, 15A, 20A |
| Ripple voltage | Within 5% RMS at full load&max.DC voltage |
| Current | Limited to 110% of In |
| Output Regulation | ±1% for 198 to 242VAC supply voltage |
| Analog measurements | Output voltmeter and amperemeter,load voltmeter and amperemeter(Dropping diode type) |
| Local alarms | Mains fault,output under voltage,output overvoltage,ground fault |
| Mode of operation | Boost/float, Manual/Automatic |
| Protections | Overload/short circuit,Charger fuses,Battery and load breaker,Over temperature protection |
| Available languages | English,Spanish(Optional) |
| GENERAL INFORMATION | |
| Cabinet Dimession | Battery inside cabinet:1100H*580W*600D |
| Battery outside cabinet:350H*440W*500D | |
| Degree of protection | IP20 |
| Color | RAL7035 |
| Operating Temperature | 0℃ to 45℃，Up to 55℃ with power derating |
| Humidity | 10% to 95% non condensing |
| Installation height | Up to 1000m over sea level. Up to 3000m with power derating |
| Connection | Bottom |
| OPTIONAL | |
| Communication | RJ45,Modbus TCP/IP |
| RS485,Modbus RTU | |
| DNP3.0 | |
| Volt-free contacts | |
| Remote monitoring | |
Applications
Power generation plants, Transmission and Distribution, Substations, Continuous process industries, Oil & Gas Petrochemical industries & Rail transport

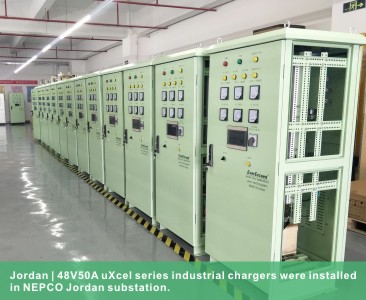

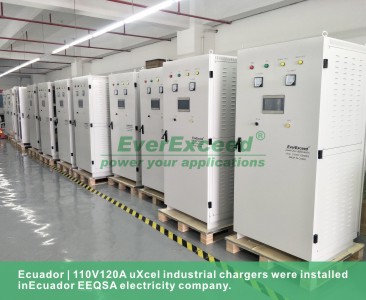

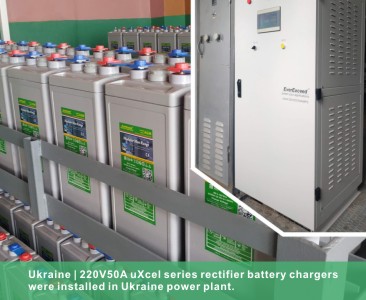

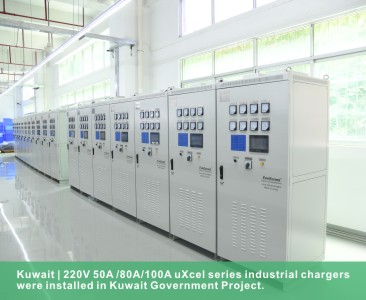

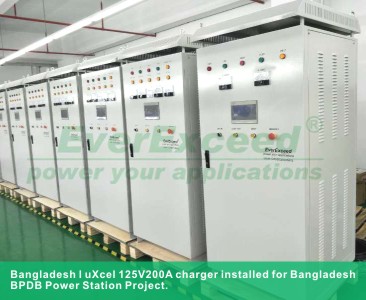

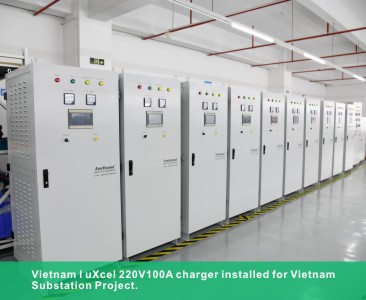

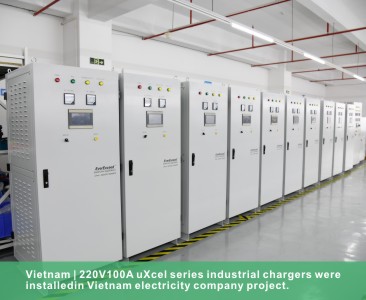

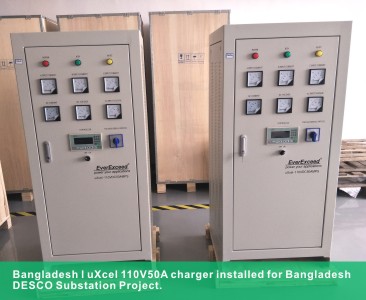

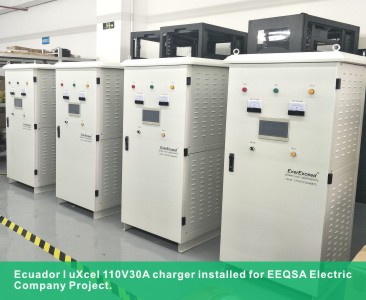

Successful Case
 |  |  |
 |  |  |
 |  |  |
